Customized 5 Watt LTE 2600MHz 4G Signal Repeater Cell Tower Booster

Product Categories
Shenzhen Atnj Communication Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Customized 5 Watt LTE 2600MHz 4G Signal Repeater Cell Tower Booster

  • 1
  • 2

Brand Name : ATNJ

Model Number : AT-37-L26

Certification : CE,ROHS，CCC，TUV,BV， ISO

Place of Origin : China

MOQ : 5Pcs

Price : USD+1100--1300+kit

Payment Terms : T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability : 1000+unit+per day.

Delivery Time : 3-5 work days

Packaging Details : Standard neutral packing

2600MHz Frequency Range : 2500-2570MHz , 2620-2690MHz

Booster Gain : 85dB

Booster Power : 37dBm

Material : Zinc Alloy ,Plastic

Booster Bandwidth : Wide Range

Support network : 4G, Voice

Booster Warranty : 3 years

Products Type : Signal Amplifier 4G, elsys amplimax 4g

Contact Now

 Customized 5 Watt LTE 2600MHz 4G Signal Repeater Cell Tower Booster



5 Watt Customized LTE 2600MHz 4G Signal Repeater Cell Tower Signal Booster Amplifier



Product Detail:


Model No : AT-37-L26

With ALC AGC Function

Can control gain automatically. Avoid base station interference

(Band 7) 2600MHz -- Uplink frequency : 2500 - 2570MHz / Downlink frequency : 2620 - 2690MHz


Network support : 4G Voice


Gain : 85dB



Output power : 5watt


Power Supply : AC110V～220V; DC+24V 5A


Connector Type : N-F



Wide Range .



Single Band Repeater with AGC/MGC

Device Model

AT-37-L26

Frenquecy Range

UplinK: 2500-2570MHz Downlink: 2620-2690MHz

Working System

Band7 LTE 2600MHz

Gain

85dB

Device Output Power

37dBm

Bandwidth

Wide Range

Ripple in Band

≤4dB

Noise Figure @ Max.Gain

≤6dB

V.S.W.R

≤2dB

MTBF

>50000Hours

Power Supply

AC110V～220V;DC+24V5A

Power Comsumption

<20W

Impedance Matching

50ohm

Mechanical Specification

RF Connector

N/F

Cooling

Heatsink Convection Cooling

Dimension

170*130*26(mm)

Net Weight

0.35KG

Installation Type

Wall Installation or Desk

Environment Conditions

IP55X

Origin

Shenzhen

Operating Temperature

-10°C~55°C

Further detail pls click here for downloading the products specification:





Selling Point





One device connects with several antennas to cover large area
1. Wide Coverage Up To 3000 ㎡.
2. Max Output Power:33dBm Support 2 to 5 Bands .
3. Industrial Design IP65 level waterproof .
4. Full Intelligent LCD Guide .
5. Three years warranty,worry-free after-sales .


Output Power : 5W/10W/20W

Power Supply : AC adapter

Size : 308*219* 135mm
Weight : 7.0kg

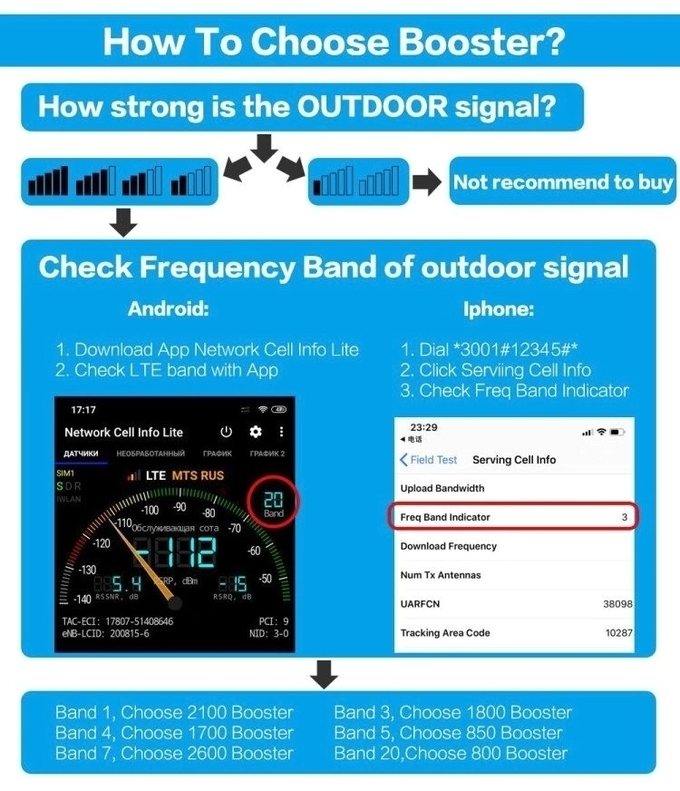

Please Check Frequency before Buying How to check?



- Android mobile phone
Download App called < Network Cell Info Lite >
The App will tell the number of LTE band


- Iphone
Dial *3001#12345#*
Clink Cell Serving Info
Check Freq Band Indicator, the number is LTE Band



Customized 5 Watt LTE 2600MHz 4G Signal Repeater Cell Tower Booster





Product Pictures





Customized 5 Watt LTE 2600MHz 4G Signal Repeater Cell Tower Booster





FAQ:



1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.



5. Can I use your device in suburbs or remote areas?
Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
